Inventor Builds an 8-Bit K’NEX Computer That Actually Computes

A plastic construction toy, used by kids to build towers or roller coasters, has been turned into something amazing: an 8-bit mechanical computer. Created by inventor Shadowman39, this K’NEX masterpiece isn’t just a display piece—it actually does math.

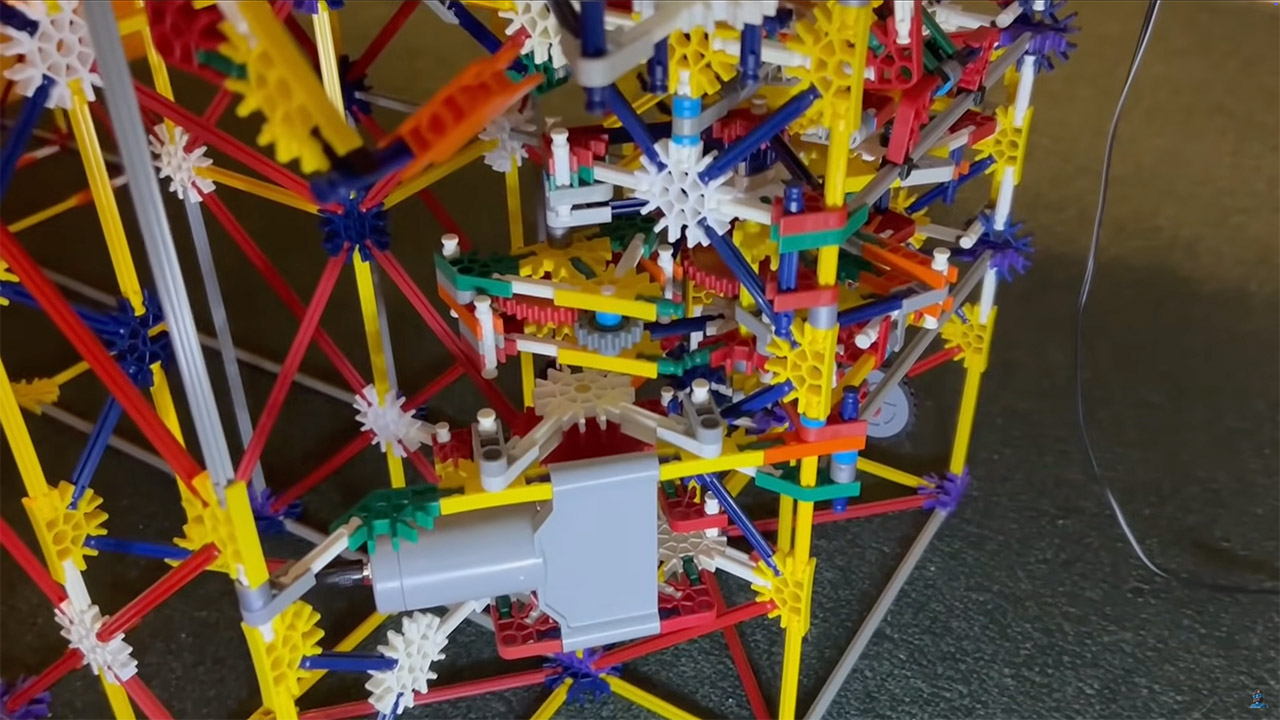

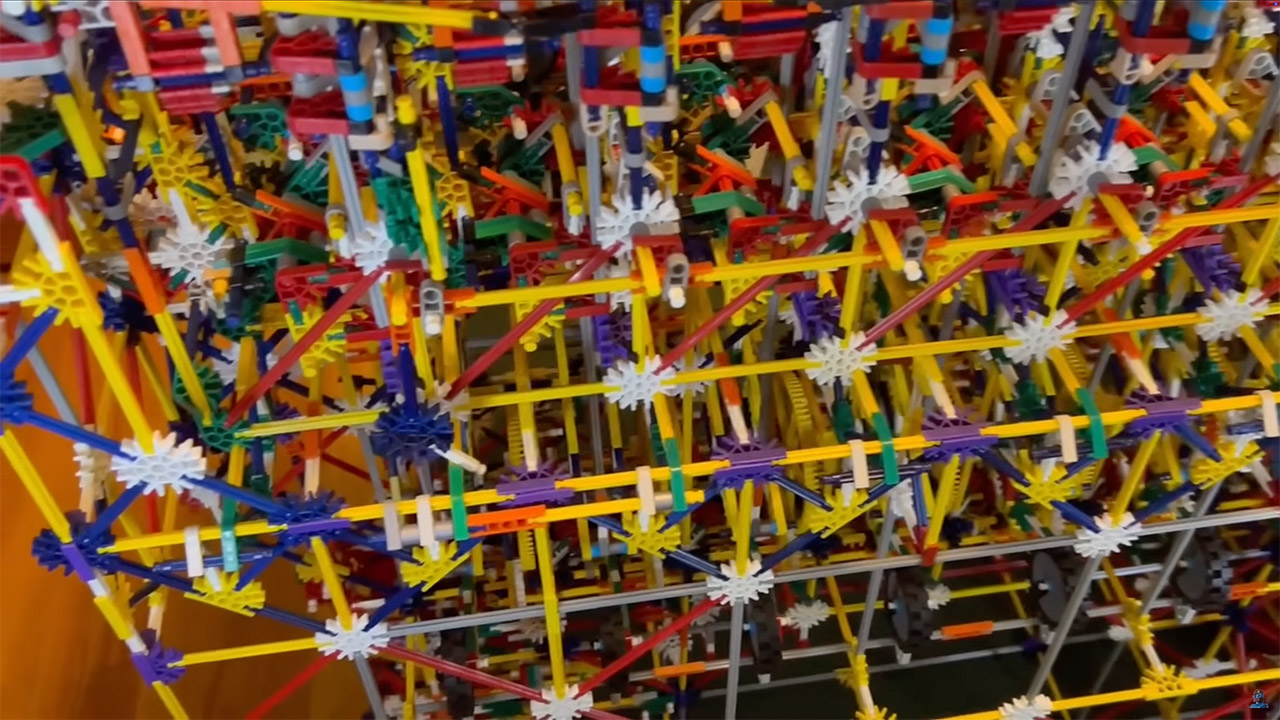

Shadowman39’s K’NEX computer is centered around the ALU, the heart of any processor, which handles basic arithmetic like addition. Not a full computer with memory or a program counter, but a great start. It processes numbers from 0 to 255 (or -128 to 127 in signed mode), stores them in registers made of levers, each a single bit. Flip a lever to set a 1 or 0 and the machine is ready to calculate. Enter two numbers this way and a mechanical drive system, powered by a rack-and-pinion setup, grinds through the addition, spits out the sum. Slow and deliberate, but that’s the charm—every click and clack shows you how it works.

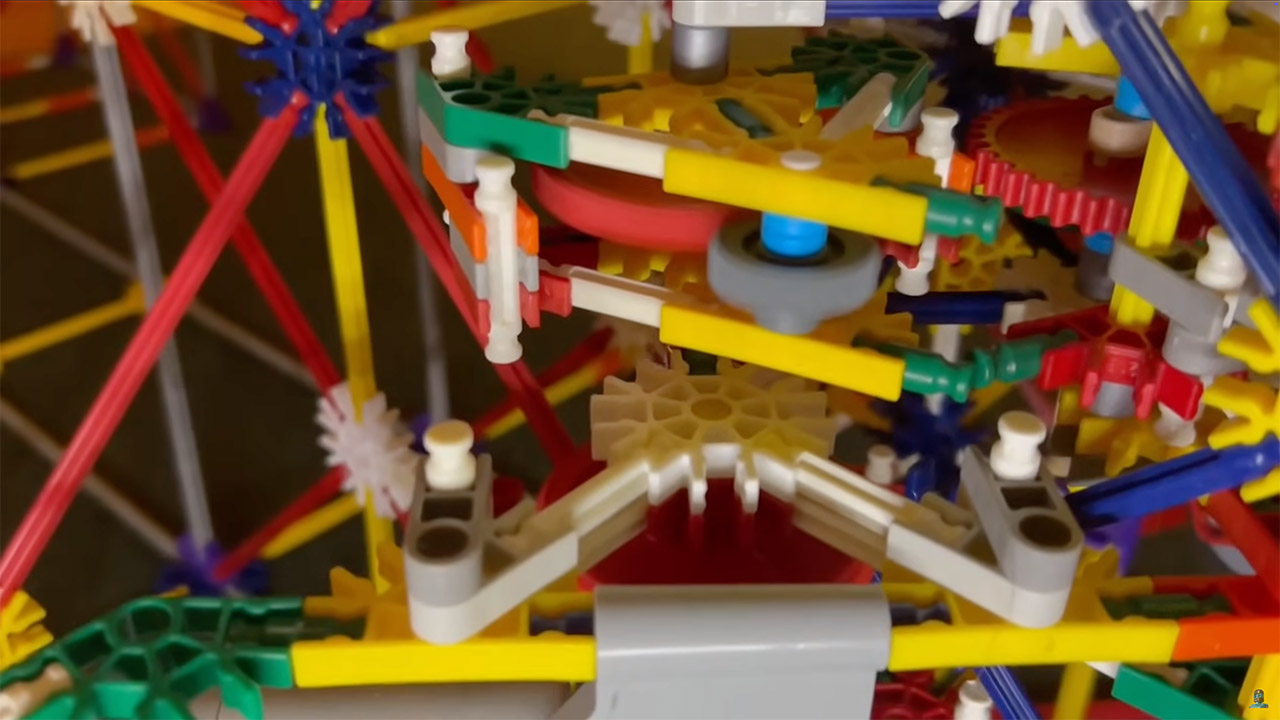

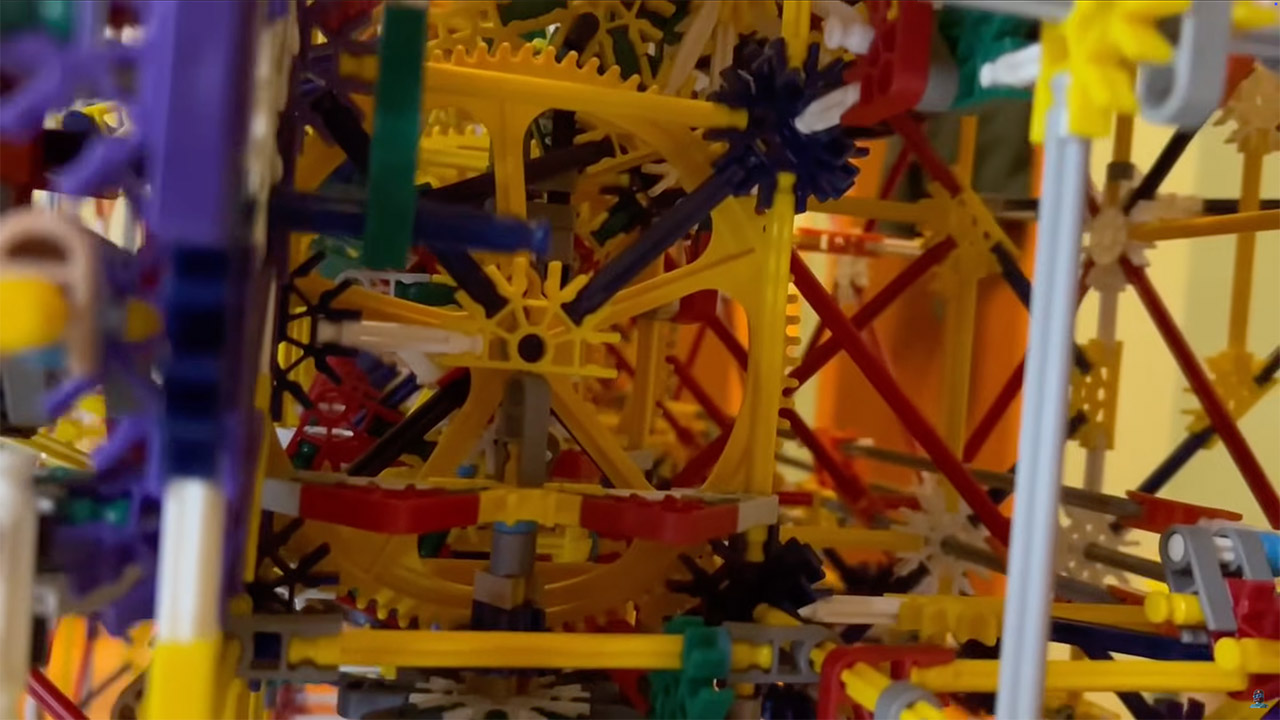

Building a computer out of K’NEX is a daunting task. The toy’s plastic rods, connectors and gears are meant for play not precision engineering. But Shadowman39 has engineered them into a system that mimics the logic gates of early computers. Each bit in the ALU uses carefully arranged levers and gears for binary addition, the rack-and-pinion mechanism (used to make K’NEX creations roll or spin) drives the sequential operations to process each digit correctly.

The appeal is in the nostalgia and technicality. K’NEX like LEGO is a childhood staple, but few have taken it this far. The ALU’s mechanical design is like 19th century mechanical calculators which used gears and levers to do math.

This isn’t Shadowman39’s first big K’NEX project. Past creations include a fully functional Skeeball machine with a coin hopper that accepts quarters and a motorized scoreboard. That project was 85 inches long and used over 10,000 pieces over a year and showed Shadowman39’s ability to take K’NEX beyond play.

K’NEX pieces aren’t rigid—plastic flexes, joints loosen and alignment can shift. Precision is key when every lever has to be in exactly the right position. Shadowman39 refined the design to make it work. Unlike electronic circuits where signals zip by in a flash, this mechanical ALU moves slow, each step visible to the eye. That’s part of the charm, turning computation into a near meditation.
